Non-Dismantling Test Flash IC Program Clip Adapter

Non-Dismantling Test Flash IC Program Clip Adapter

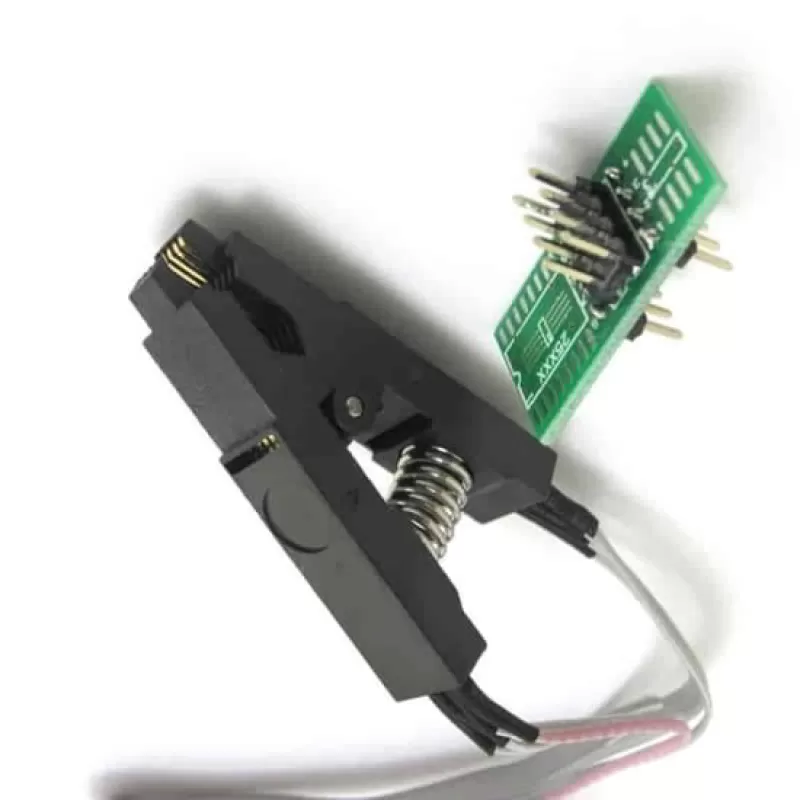

This is an SPI BIOS FLASH Non-Dismantling Test Program IC programming clip that is perfect for reading or writing EEPROMs. This clip allows for in-circuit programming of SOP8 chips. It is best to burn/dump your Flash IC without removing it from the board.

It means, you can program SOP8 chips without having to remove them from the circuit board, just clip to the chip and use one of the two breakout adapter boards to connect to your programmer.

The ISP cable is wired 1:1 so will support any programmer that has a ZIF/DIL socket and supports ISP/ICSP Mode

Features:

• Supports many different EEPROMS 150mil / 209mil – 24Cxx, 25Cxx, 93Cxx, 95xxx, 25Lxx
• Pitch Lead: 2.54mm
• Pitch row: 3.81mm
• SOIC 8 / SOP8 Clip
• Spring Loaded


Package Includes:

1 x SPI BIOS FLASH Non-Dismantling Test Program Clip SOP8 Adapter
