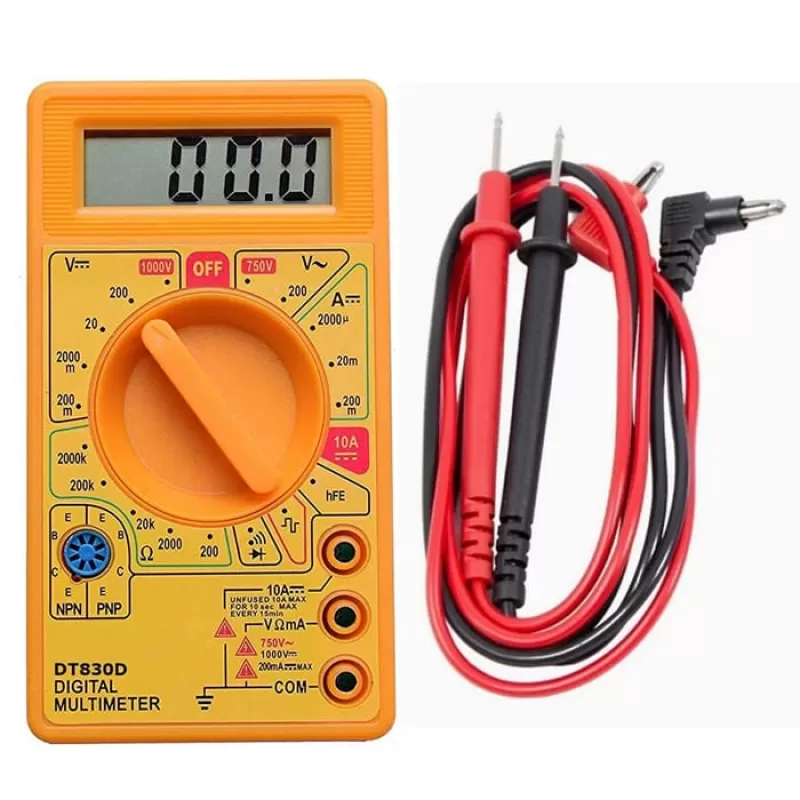

Digital Multi-Meter Digital Multimeter (Yellow Color)

Digital Multimeter with 1M Ohm Impedance is Standard Diagnostic Tool to Measure Two or More Electrical Values Such as Voltage, Current and Resistance. It uses digital and logic technology using integrated circuit technology to offer additional test capabilities.

They are Widely Used in electrical measurements, AC and DC voltage, AC and DC current, and resistance, voltmeter, ammeter, and ohmmeter, voltages and voltage fluctuations in homes or offices.

1. Material: ABS

2. Style: Handheld

3. Accurate measurement and fast speed

4. AC voltage range: 200V-750V

5. Battery type: 9V 6F22 (not included in delivery)

6. DC current range: 20m-2000u-200u-200m

7. Strong sense of pause, smooth and wear-resistant dial can be placed for a long time

8. DC voltage range: 200m-2000m-20V-200V-1000V

9. Measurement functions: Battery, resistance, DC current, AC voltage, DC voltage

10. When the battery power is too low, a low-voltage alarm icon will appear, indicating that the battery needs to be replaced in time

11. Dimensions: 122.9 x 68 x 24.4mm

12. Net weight: 62g

Packing list:

Multimeter x 1

Test lead x 1

Manual x 1

How to use it? -

• When testing DC voltage, AC voltage, DC current, resistance, diode, buzzer, and battery, connect the red test lead to the “VΩmA” jack and the black test lead to the “COM” jack.
• When you need to test a current of more than 200mA, connect the red test lead to the “10A” jack and the black test lead to the “COM” jack.
• When testing the temperature, connect the temperature probe to the “VΩmA” jack or “COM” jack.
